Vending Machine Parts Explained: What’s Inside and How It All Works

Vending machines are everywhere, from office lobbies to street corners, offering snacks, drinks, and even specialty items with the press of a button. But what’s inside of a vending machine? This guide walks you through the essential vending machine components that make these automated systems run smoothly and efficiently.

Cabinet and Structural Components of a Vending Machine

The cabinet forms the foundation of every vending machine. It houses all internal systems and protects the vending machine parts from external damage.

• Outer Shell: Constructed from reinforced steel or aluminum to resist vandalism and weather.
• Doors and Locks: Heavy-duty lockable doors with transparent tempered glass panels for visibility and access.
• Internal Frame: Includes guide rails, shelves, and brackets to support the various internal components of a vending machine.

These structural vending machine components ensure security, stability, and accessibility.

Core Vending Machine Components: Cooling, Heating, and Mixing

Inside of a vending machine, you’ll find specialized systems tailored to the products being dispensed:

• Refrigeration Unit: Found in cold drink and ice cream vending machines, including compressors, condenser coils, evaporators, refrigerant, thermostats, and insulation.
• Heating Module: Used in popcorn or pizza vending machines, employing infrared or convection heating with thermostatic controls.
• Mixer or Blender: Found in smoothie or cotton candy vending machines, powered by motors to mix ingredients on demand.

These are fundamental parts of a vending machine's operational system, working in conjunction with electrical and control components.

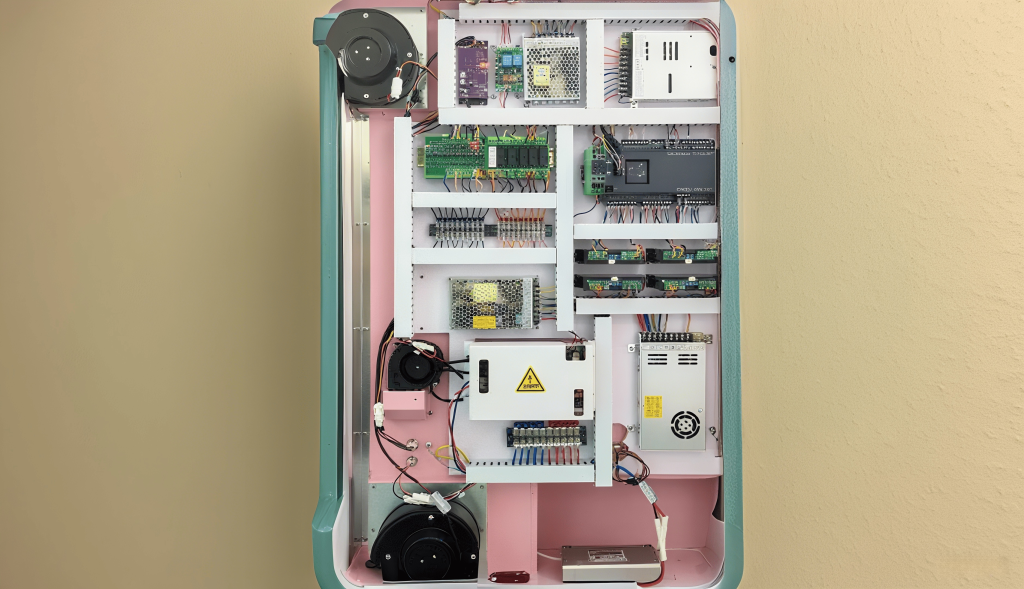

Electrical and Power Parts of a Vending Machine

Every vending machine relies on electricity and control circuits to function efficiently:

• Power Supply Unit (PSU): Converts AC input to the DC voltages required by different vending machine parts.
• Wiring Harness: Links all key components, such as motors, sensors, and LED lights.
• Fuses and Relays: Protect vending machine components from overloads and short circuits.

These elements distribute power and ensure safe operation inside the vending machine.

Payment and User Interface Systems

To interact with users and process payments, vending machines include several front-facing components:

These user interface components are among the most visible and frequently used parts of a vending machine.

Control Board: The Brain Inside of a Vending Machine

At the heart of all vending machine components is the logic controller, often called the VMC (vending machine controller):

• Control Board (VMC): Central processor that manages inputs (payments, selections) and outputs (motors, cooling systems).
• Software/Firmware: Sets product pricing, logs sales, and controls inventory.
• Diagnostic Interface: Allows operators to troubleshoot errors and configure settings.

This system ensures that all parts of a vending machine work together seamlessly.

Product Dispensing Mechanisms

One of the most important vending machine components is the product dispensing system. Here’s how different methods work:

Supporting components include:

• Stepper Motors: For precise movement and control
• Delivery Bin: The area where the product is collected
• Safety Flap and Sensor: Prevents theft and confirms product retrieval

These parts of a vending machine determine how smoothly and reliably products are delivered.

Smart Monitoring and Telemetry Components

Modern vending machine parts are often equipped with connected technologies to optimize operations:

• Telemetry Module: Sends performance and inventory data via Wi-Fi, 4G, or Ethernet
• Sensors: Monitor stock levels, door status, jams, and temperature
• Internal & External Lighting: Enhances visibility and customer attraction

These advanced vending machine components are essential for remote monitoring and real-time performance tracking.

Step-by-Step: How the Parts of a Vending Machine Work Together

Understanding what’s inside of a vending machine helps explain how all components interact during a sale:

1. Product Selection: The customer presses a button or touches a screen.
2. Payment Authorization: The system verifies and processes payment.
3. VMC Logic Control: Determines product availability and initiates dispensing.
4. Product Delivery: Motors activate the dispensing mechanism.
5. Transaction Completion: Inventory updates, change returns, and telemetry logs the sale.

Each vending machine component plays a role in ensuring the entire cycle takes just 5–10 seconds.

Why High-Quality Vending Machine Parts Matter

The reliability and performance of vending machines directly depend on the quality of their components:

Low-quality parts can result in:

• Frequent malfunctions (e.g., jammed spirals, inaccurate sensors)
• Poor customer experience (e.g., failed transactions, rejected bills)
• Increased maintenance and downtime

Investing in premium vending machine components leads to:

• Greater Reliability and Uptime
• Enhanced Customer Satisfaction
• Lower Long-Term Operating Costs
• Better Data and Inventory Management
• Safer, More Durable Machines

Conclusion

Whether dispensing smoothies, popcorn, snacks, or ice cream, all vending machines operate using a shared set of internal systems. Our machines are designed with carefully selected, high-quality components—from control boards to cooling systems—to ensure long-term performance, stability, and customer satisfaction.

Our vending machines are not only user-friendly but also engineered from the inside out for reliability. If you're looking for a smart investment in automated retail, our product line is built to deliver.
